Diagnostic data connector, 16-pin connector

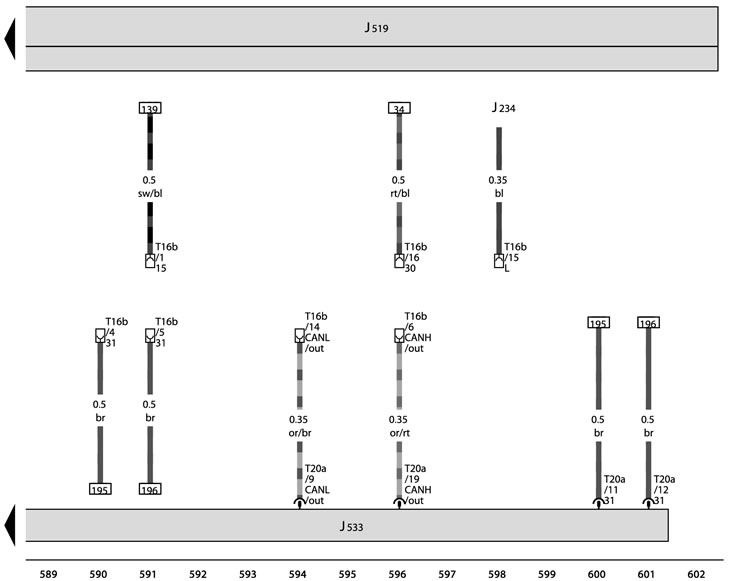

J234 - Airbag control unit;

J234 - Airbag control unit;
J519 - On-board power supply control unit;
J533 - Diagnostic data connector;
T16b - 16-pin connector, on diagnostic connection;
T20a - 20-pin connector
