Electric torch, luggage compartment light on the left, luggage compartment light on the right (Skoda Kodiaq NS7)

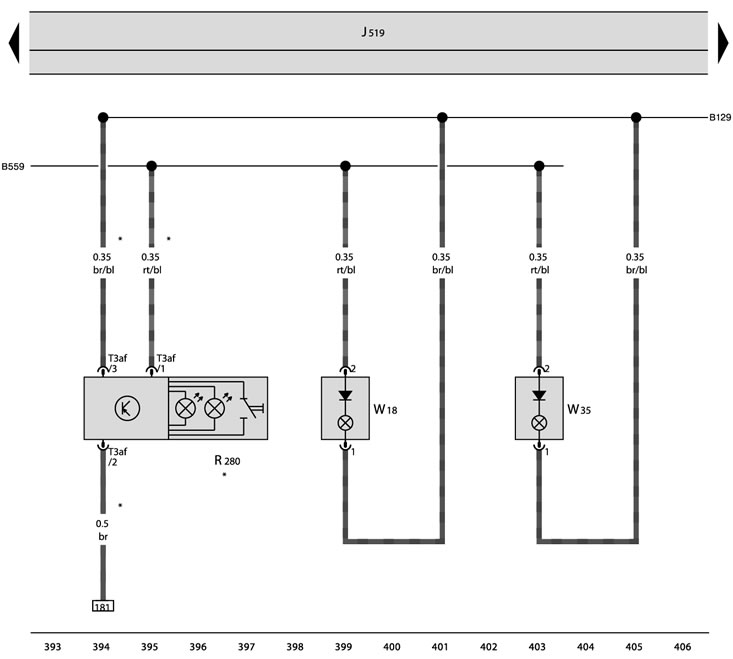

Electric torch, luggage compartment light on the left, luggage compartment light on the right

J519 - On-board power supply control unit;
R280 - Electric Flashlight;
T3af - 3-pin connector;
W18 - Left luggage compartment light;
W35 - Right luggage compartment light;
B128 - Connection (luggage compartment lighting), in the vehicle's interior wiring harness;
B559 - Positive connection 1 (30g), in the main wiring harness

* Depending on the configuration

(Article reprinted from the website: «skodabook.ru»)

This article is available at russian, bulgarian, belarusian, ukrainian, serbian, croatian, romanian, polish, slovak, hungarian

Article verified: Eleonora Afanasyeva
