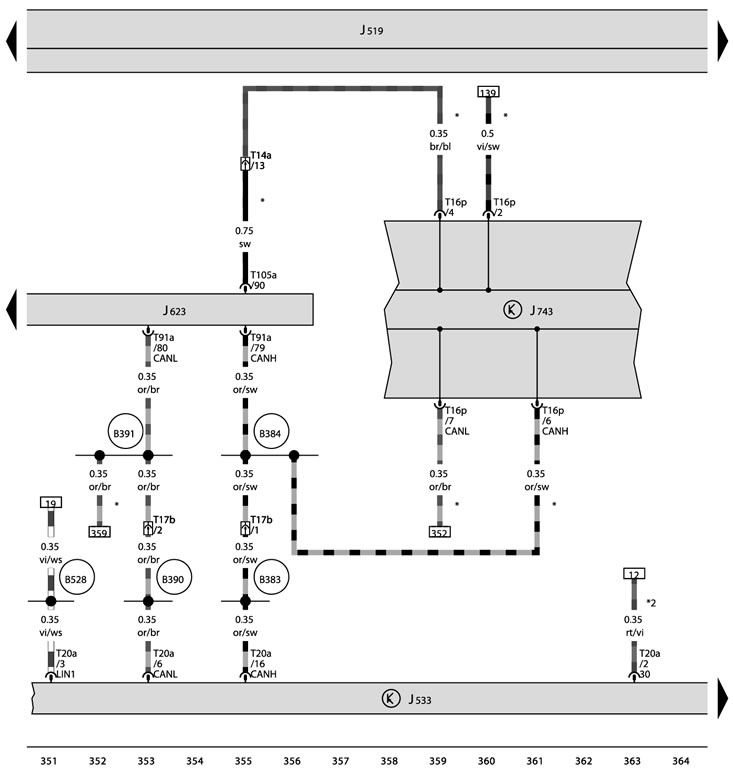

Diagnostic data connector, Electronic engine control unit, Mechatronics module for dual-clutch automatic transmission
J519 - On-board power supply control unit;
J533 - Diagnostic data connector;
J623 - Engine control unit;
J743 - Mechatronics module for dual-clutch automatic transmission;
T14a - 14-pin connector, front left in the engine compartment;
T16p 16-pin connector;
T17b - 17-pin connector, on the lower part of the left front body pillar, brown;
T20a - 20-pin connector;
T91a - 91-pin connector;
T105a - 105-pin connector;
B383 - Compound 1 (Transmission CAN bus, high), in the main wiring harness;
B384 - Compound 2 (Transmission CAN bus, high), in the main wiring harness;
B390 - Compound 1 (Transmission CAN bus, low), in the main wiring harness;
B391 - Compound 2 (Transmission CAN bus, low), in the main wiring harness;
B528 - Connection 1 (LIN bus) in the main wiring harness
* For models with automatic transmission
* 2 For models without additional heating
