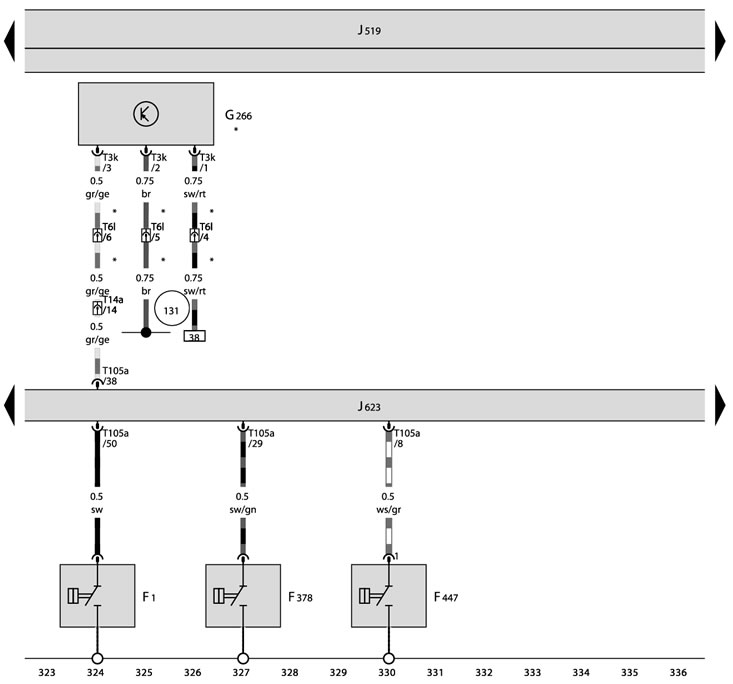

Engine oil pressure sensor, Low-pressure engine oil pressure sensor, Engine oil level and temperature sensor, Engine control unit
F1 - Engine oil pressure sensor;
F378 - Engine oil pressure sensor in the low-pressure line;
F447 - 3rd stage engine oil pressure sensor;
G266 - Engine oil level and temperature sensor;
J519 - On-board power supply control unit;
J623 - Engine control unit;
T3k - 3-pin connector;
T6l - 6-pin connector, on the left in the engine compartment;
T14a - 14-pin connector, front left in the engine compartment;
T105a - 105-pin connector;
131 - Ground connection 2, in the engine compartment wiring harness
[Original text is located on: skodabook.ru]
*For models with extended service interval (ESI)
