On-board network control unit

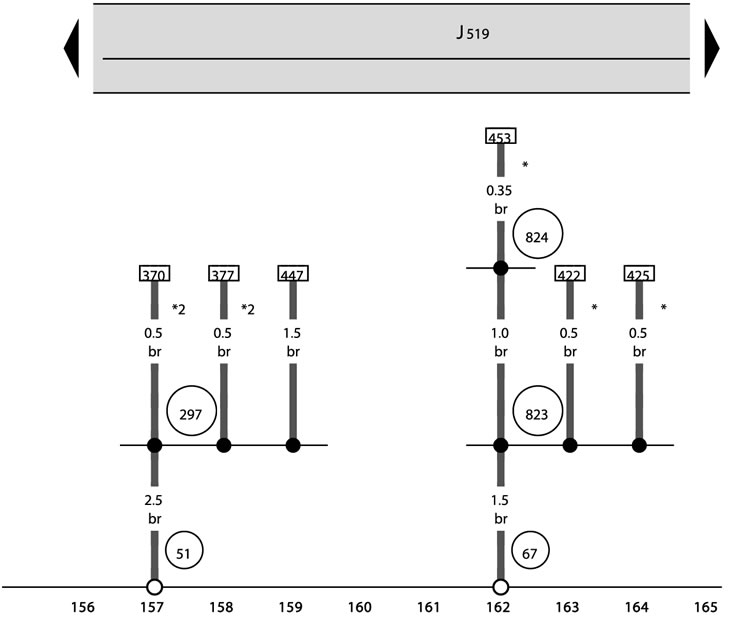

51 - Ground point, on the right in the luggage compartment;
67 - Ground point, left on the front suspension subframe;
297 - Ground connection 12, in interior wiring harness;
823 - Ground connection 16, in interior wiring harness;
824 - Ground connection 17, in interior wiring harness
* Special equipment
*2 Depending on the configuration

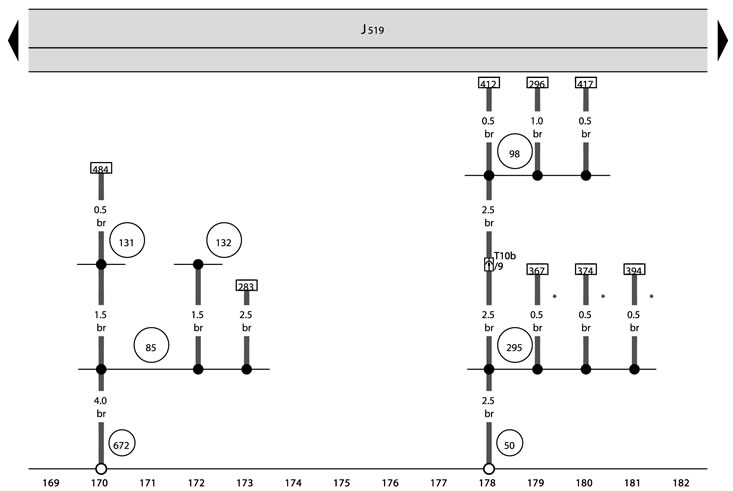

T10b - 10-pin connector, in the tailgate, brown;
50 - Ground point, in the left part of the luggage compartment;
85 - Ground connection 1, in the engine compartment wiring harness;
98 - Ground connection in the tailgate wiring harness;
131 - Ground connection 2, in the engine compartment wiring harness;
132 - Ground connection 3, in the engine compartment wiring harness;
295 - Ground connection 10, in interior wiring harness;
672 - Ground point 2, on the front of the left side member of the body
* Depending on the configuration

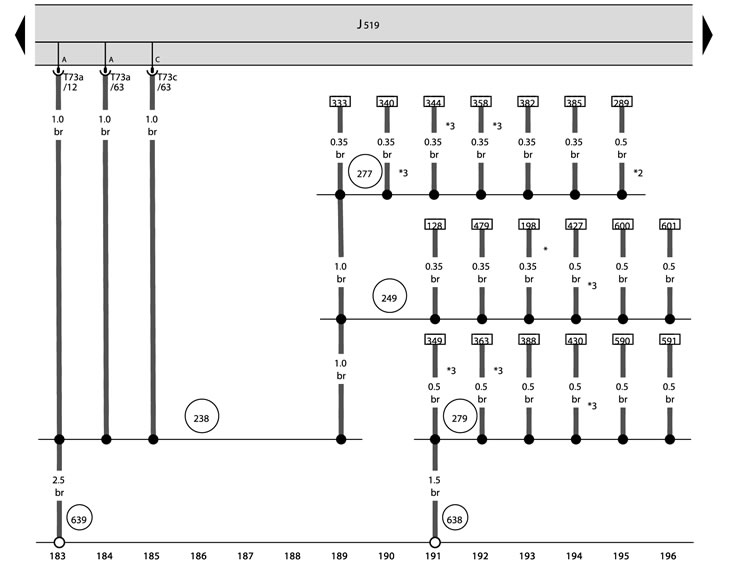

T73a - 73-pin connector;
T73c - 73-pin connector;
238 - Ground connection 1, in interior wiring harness;
249 - Ground connection 2, in interior wiring harness;
277 - Ground connection 3, in interior wiring harness;
279 - Ground connection 5, in interior wiring harness;
638 - Ground point, on the right front body pillar;
639 - Ground point, on the left front body pillar
[View the original on the website: SkodaBook]
* For models without heated steering wheel
* 2 Special equipment
* 3 Depending on the configuration
