Throttle body module, Engine control module (Skoda Kodiaq NS7)

Throttle body module, Engine control module

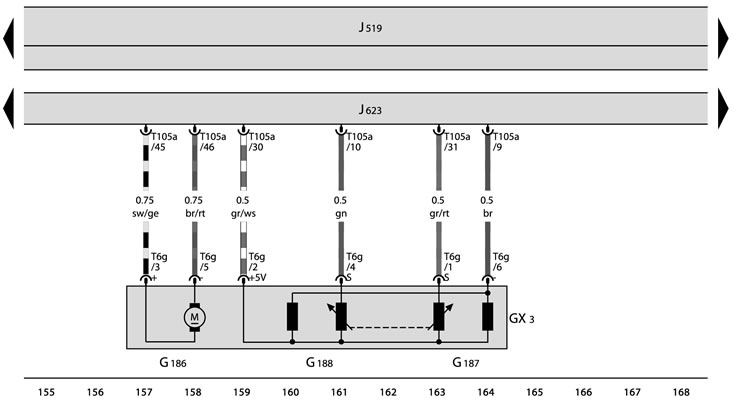

GX3 - Throttle Body Module;
G186 - Throttle actuator assembly;
G187 - Throttle Position Sensor No. 1;
G188 - Throttle Position Sensor No. 2;
J519 - On-board power supply control unit;
J623 - Engine control unit;
T6g - 6-pin connector;
T105a - 105-pin connector
