Removal and installation
1. Remove the front wheel.
2. Unscrew the mounting screws (3) shown in the figure below.
3. Drill out the rivets (4).

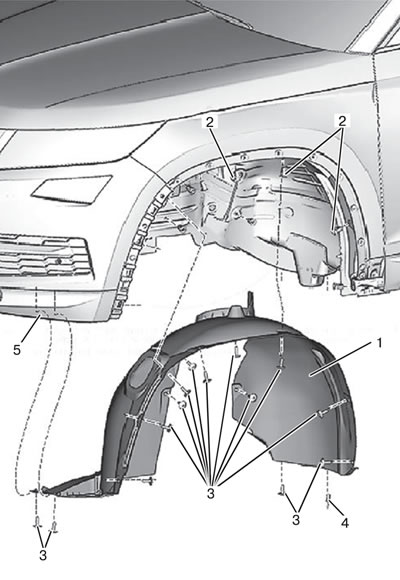

4. Pull and remove the front wheel arch liner (1) as shown in the figure below.
5. Installation is carried out in the reverse order of removal.
