Removal and installation a short pin with a spring (with a groove around the perimeter) of the satellite axle (Skoda Kodiaq NS7)

Removal

1. Cover the inner ring of the tapered roller bearing to prevent possible damage and metal chips.

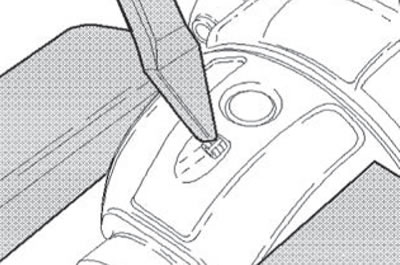

2. Knock out the elastic pin with a chisel; install the chisel into the perimeter groove.

Installation

1. Press into the differential box until it stops.
