Installation of axle gears and bevel pinions of the differential (Skoda Kodiaq NS7)

  • Main
  • Kodiaq
  • NS7 (2016-2024)
  • Transmission
  • Manual gearbox
  • Installation of axle gears and bevel pinions of the differential
0
  • Install the spherical bearing, pre-lubricated with transmission oil.
  • Install both axle gears and secure them(eg shaft with flange).
  • Install both bevel gears of the differential, mutually offset by 180'.

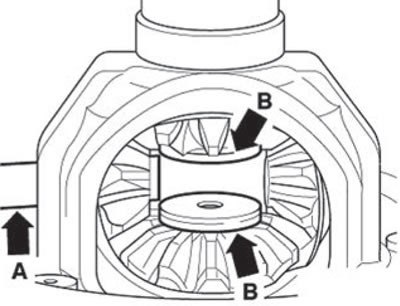

  • Drive the satellite axle (arrow A) up to the first bevel satellite of the differential.
  • Install threaded spacers (arrows B) into the differential axle gears. Assembly position: flange towards planetary gears.
  • Press the satellite axle into its original position and secure with an elastic pin.

Press the satellite axle into its original…
