Contents: Removal ⬇ Installation ⬇
Caution: Incandescent bulbs are under pressure and may break when replaced, which could result in injury. Before starting work on replacing lamps, wear protective gloves and glasses.
Attention:
- When replacing an incandescent lamp, do not touch its bulb with bare fingers; use clean gloves. Oil from your fingers can remain on the surface of the lamp bulb, which can result in the lamp being destroyed, or the oil can darken and condense on the surface of the reflector, which will affect the light output of the headlights.
- When installing the rubber covers, be extremely careful to ensure they are installed properly. Otherwise, moisture and water may get inside the headlight housing.
- Before starting any work, turn off the ignition and all electrical energy consumers.
Removal

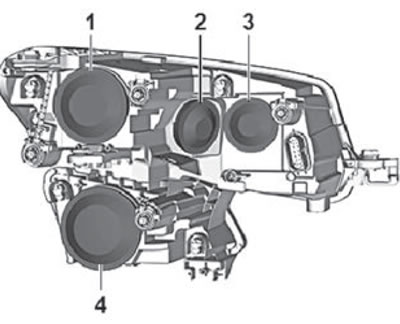

1. Remove the cover (1) from the headlight housing as shown in the figure below.

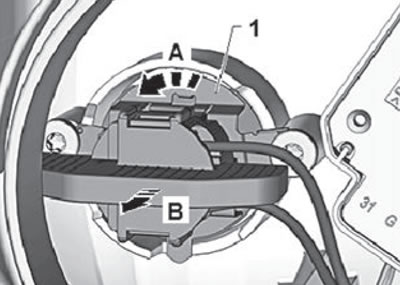

2. Turn the lamp holder (1) in the direction of arrow A, as shown in the figure below.
3. Pull the socket with the low beam lamp assembly to remove it from the headlight reflector in the direction of arrow B.

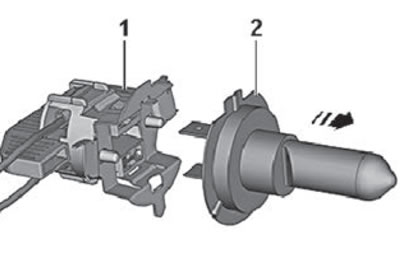

4. Completely remove the low beam lamp (2) in the direction of the arrow from the socket (1), as shown in the figure below.
Installation
Installation is carried out in the reverse order of removal.
