Halogen lamps

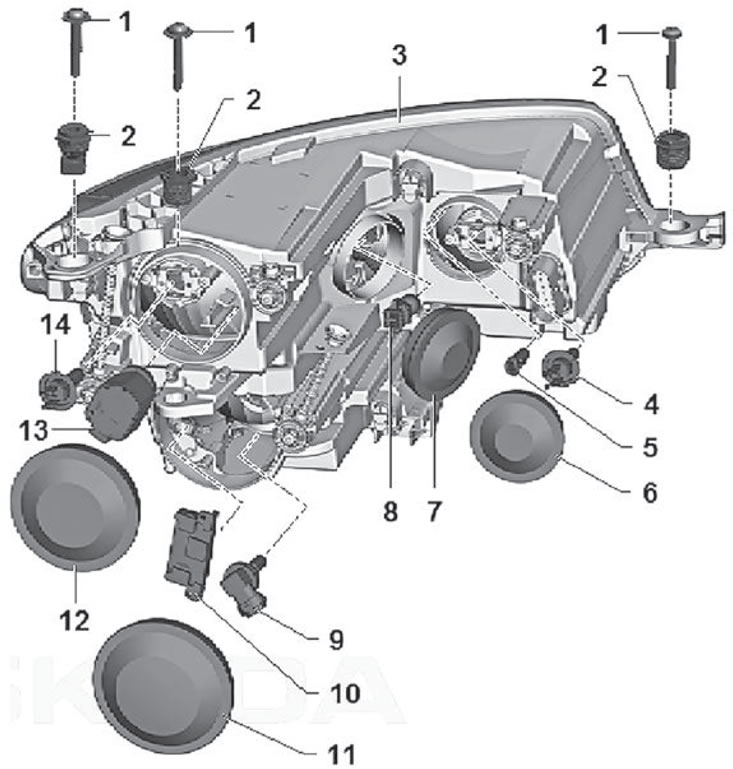

1. Fastening screw, tightening torque 3.5 Nm; 2. Hollow mounting bolt; 3. Headlamp housing; 4. Headlamp high beam bulb, H7; 5. Parking light bulb, W5WLL; 6. Lid; 7. Lid; 8. Turn signal lamp, PWY24W; 9. Fog lamp, H8; 10. LED daytime running light module; 11. Mounting screw; 12. Lid; 13. Lid; 14. Headlight corrector motor; 15. Low beam lamp, H7 LL.
Caution: H7 and H15 incandescent bulbs are pressurized and may rupture when replaced, which could result in injury. Before starting work on replacing lamps, wear protective gloves and glasses.
Attention:
- When replacing an incandescent lamp, do not touch its bulb with bare fingers; use clean gloves. Oil from your fingers can remain on the surface of the lamp bulb, which can result in the lamp being destroyed, or the oil can darken and condense on the surface of the reflector, which will affect the light output of the headlights.
- When installing the rubber covers, be extremely careful to ensure they are installed properly. Otherwise, moisture and water may get inside the headlight housing.
- Before starting any work, turn off the ignition and all electrical energy consumers.
LED headlights

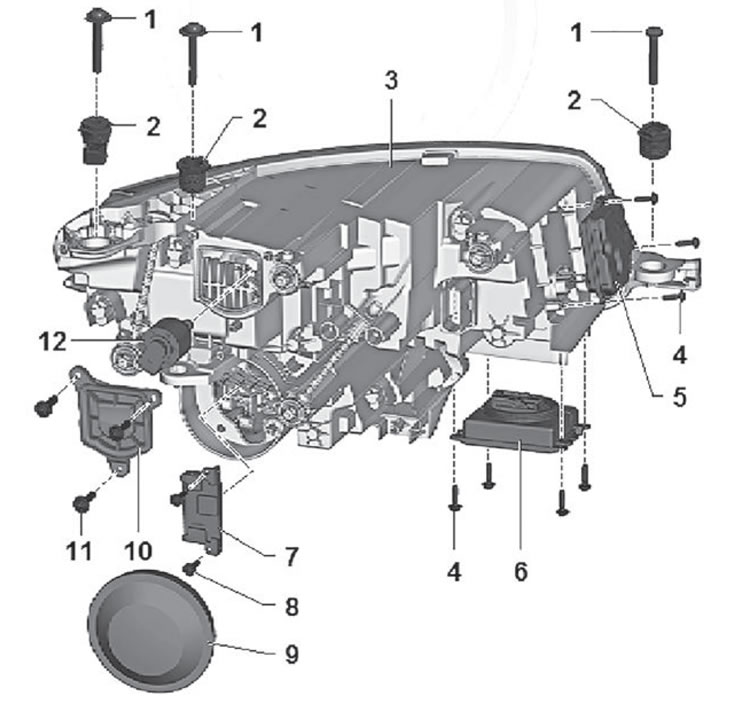

1. Fastening screw, 3.5 Nm; 2. Hollow bolt; 3. Headlamp housing; 4. Mounting screw; 5. Left headlight control module; 6. Power module 1 for left LED headlight; 7. Fog and parking light module; 8. Mounting screw; 9. Lid; 10. Lid; 11. Mounting screw; 12. Headlight corrector electric motor.
