Contents: Removal ⬇ Installation ⬇
Removal
1. Turn off the ignition.
2. Disconnect the wiring harness connector (1) shown in the figure below.
3. Remove the lock washer (2) using the special puller (T40265) as shown in the figure below.

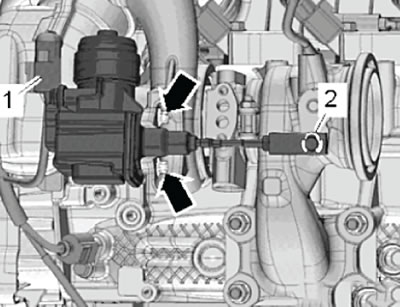

4. Unscrew the mounting screws (arrows) and remove the boost pressure regulator, as shown in the figure below.
The original article is available on: SkodaBook
Installation
Installation is carried out in the reverse order of removal.
