General appearance

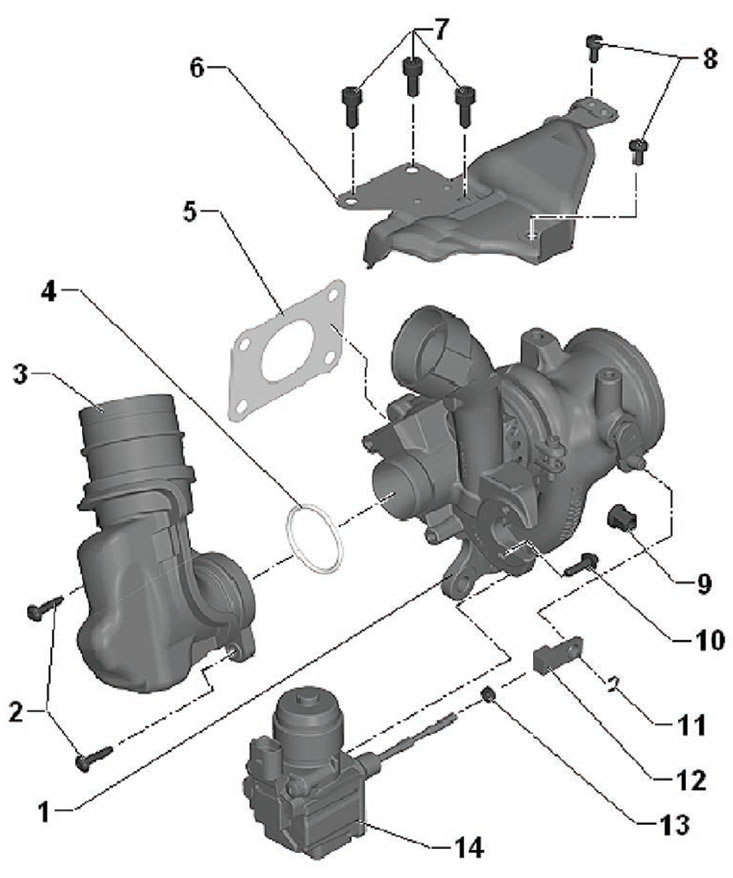

1. Turbocharger assembly; 2. Fastening screw, tightening torque during installation 8 Nm; 3. Supports; 4. Sealing ring; 5. Gasket; 6. Thermal insulation coating; 7. Mounting bolt, tightening torque during installation 25 Nm; 8. Fastening screw, tightening torque during installation 8 Nm; 9. Fastening nut, tightening torque during installation 10 Nm; 10. Fastening screw, tightening torque during installation 9 Nm; 11. Locking clamp; 12. Connecting plate; 13. Lock nut, tightening torque 10 Nm; 14. Boost pressure regulator.

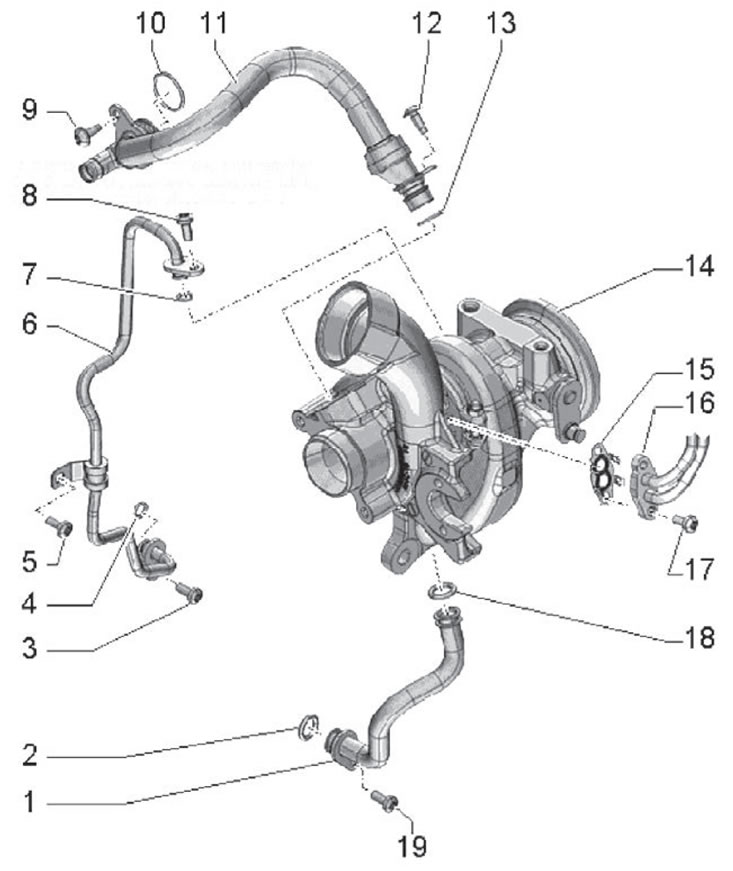

1. Return line of the lubrication system; 2. Sealing ring; 3. Fastening screw, tightening torque 9 Nm; 4. Sealing ring; 5. Fastening screw, tightening torque 9 Nm; 6. Pressure oil line; 7. Sealing ring; 8. Fastening screw, tightening torque during installation 9 Nm; 9. Fastening screw, tightening torque during installation 9 Nm; 10. Sealing ring; 11. Crankcase ventilation hose; 12. Fastening screw, tightening torque during installation 9 Nm; 13. Sealing ring; 14. Turbocharger assembly; 15. Gasket; 16. Cooling system lines; 17. Fastening screw, tightening torque during installation 8 Nm; 18. Sealing ring 19. Fastening screw, tightening torque during installation 9 Nm.
