Disassembly and assembly of the drive shaft — disassembly (Skoda Kodiaq NS7)

Removal a radial ball bearing

1. Remove the retaining ring from the drive shaft.

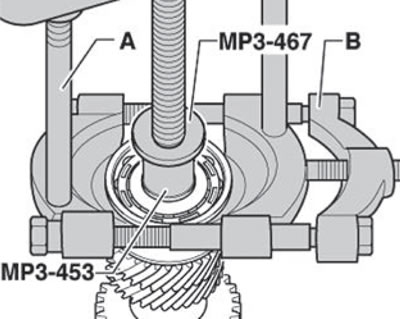

2. Install the clamping device (MP3-453 (VW431)) and the clamping plate (MP3-467 (40-105)) on the drive shaft, as shown in the figure below.

3. Install the puller (B) into the perimeter groove for the retaining ring in the bearing.

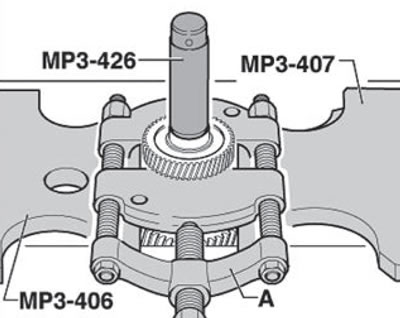

Pressing out the gear for 5th gear

Pressing in the 5th gear pinion

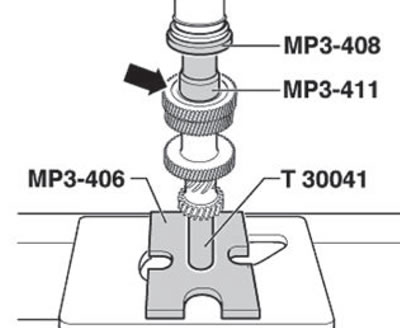

The groove (arrow) on the gear should point upwards.

Pressing in a radial ball bearing

Position for assembling radial ball bearing

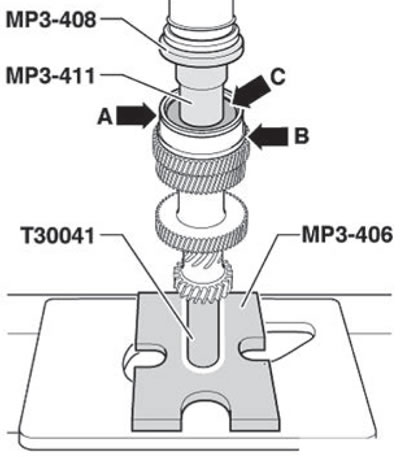

The snap ring groove must point upwards (arrow A) and the shoulder (arrow B) must point towards the 5th gear.

Note: Install the mandrel so as not to damage the seal (arrow C) of the bearing.

• Determine the thickness of the retaining ring and install it.

Determining the thickness of the retaining ring

• Install the 1.86 mm thick snap ring (A) into the groove of the drive shaft and press it upward.

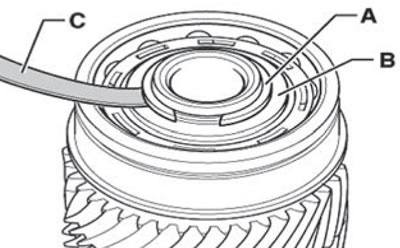

• Using a feeler gauge (C), measure the distance between the radial ball bearing (B) and the installed snap ring (A).
• Remove the retaining ring that was needed for the measurement.
• Determine the retaining ring according to the table.

The following retaining rings are available:

Measured value (mm)	Retaining ring thickness (mm)	Axial clearance (mm)
0,01... 0,05	1,86	0,01... 0,05
0,05... 0,07	1,89	0,01... 0,05
0,07...0,10	1,92	0,01... 0,05
0,10... 0,13	1,95	0,01... 0,05
0,13... 0,16	1,98	0,01... 0,05
