Pressing a disc into a driven shaft (Skoda Kodiaq NS7)

0

Pressing a disc into a driven shaft

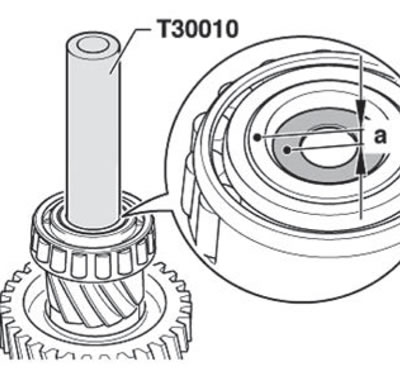

Press the disc into the driven shaft up to dimension (a)-. Size (a) = 2 mm + 0.5 mm.

Note: The disc plate should be pressed in a maximum of 3 mm, not deeper.

Note: The disc plate should be pressed in a…
