Removal
1. Remove the front left wheel arch liner (for more details, see the corresponding section in the chapter "Body").
2. Remove the headlight assembly on the left side (for more details, see the relevant section in this chapter).
3. Remove the panel under the windshield washer reservoir.

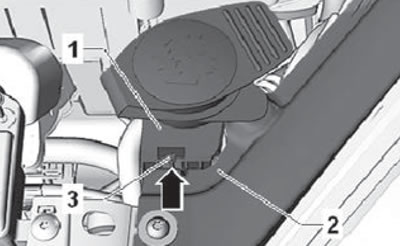

4. Disconnect the retainer (3) shown in the figure below.
5. Pull the filler neck (1) upward to detach it from the bracket (2), as shown in the figure above.
Cars without headlight washers

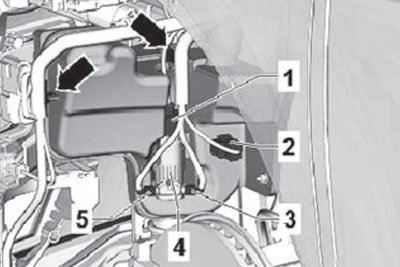

6. Unlock and disconnect the wiring harness connector (1) and (2) as shown in the figure below.
7. Release the hoses (3) and (5) from the clips, then disconnect them from the windshield and rear window washer pumps (4), as shown in the figure below.
8. Remove the fasteners (arrows) securing the washer hoses.
Models with headlight washers

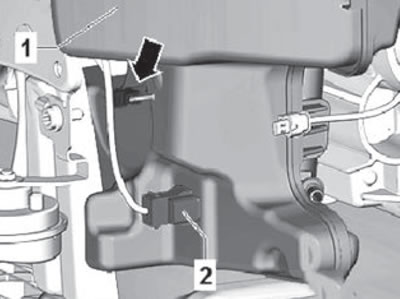

9. Unlock and disconnect the wiring harness connector (2) from the windshield washer fluid level sensor as shown in the figure below.
10. Remove the retainer (arrow) of the wiring harness from the windshield washer reservoir as shown in the figure below (1).

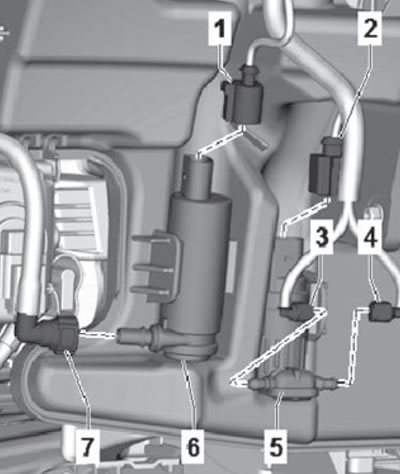

11. Unlock and disconnect the wiring harness connector (1) and (2) as shown in the figure below.
12. Unlock and remove hoses (3) and (4) from the windshield and rear window washer pump, as shown in the figure below.
13. Release the hoses (7) and disconnect them from the headlight washer pump (6).

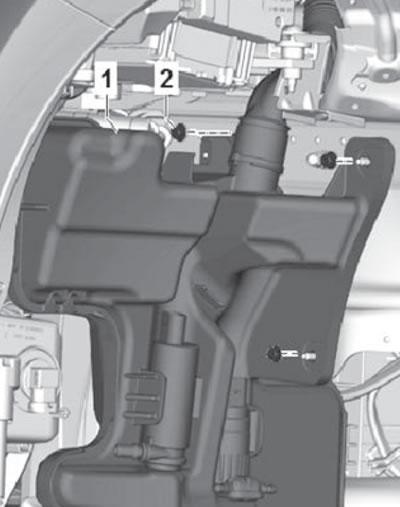

14. Unscrew the fastening nuts (2) shown in the figure below.
15. Remove the washer reservoir (1) from the pins as shown in the figure below.
16. Installation is carried out in the reverse order of removal.
