General appearance

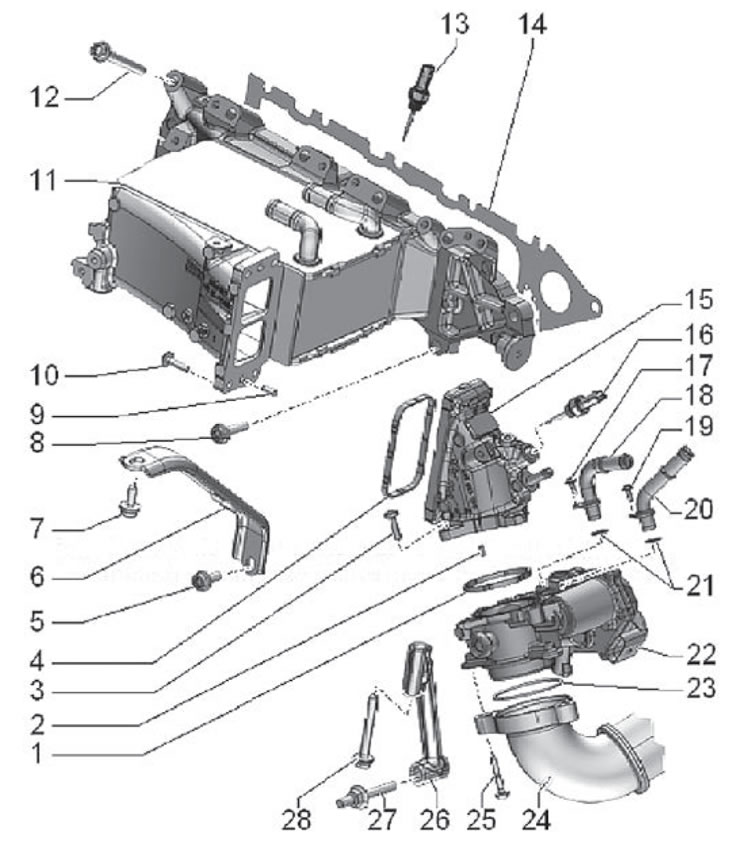

1. Sealing ring; 2. Mounting pin; 3. Fastening screw, tightening torque during installation 8 Nm; 4. Sealing ring; 5. Mounting screw; 6. Intake manifold stand; 7. Mounting screw; 8. Mounting screw; 9. Mounting pin; 10. Fastening screw, tightening torque during installation 8 Nm; 11. Intake manifold assembly with intake air intercooler; 12. Mounting screw; 13. Intercooler charge air temperature sensor; 14. Sealing ring; 15. Mounting adapter; 16. Exhaust air temperature sensor, installation tightening torque 22 Nm; 17. Fastening screw, tightening torque during installation 10 Nm; 18. Water pipe; 19. Fastening screw, installation tightening torque: 10 Nm; 20. Water pipe; 21. Sealing rings; 22. Throttle body module assembly; 23. Sealing ring; 24. Air duct; 25. Mounting bolt; 26. Throttle body module mounting bracket; 27. Mounting screw; 28. Mounting screw.

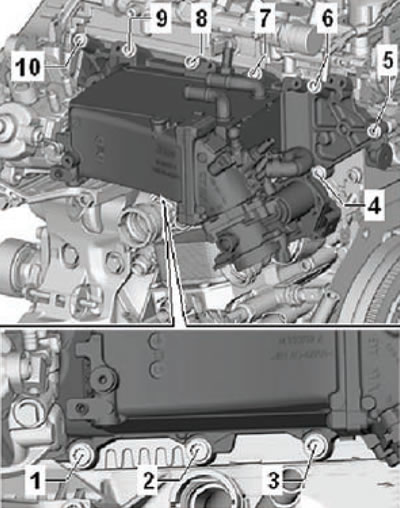

Tightening torques for threaded connections
| Approaches | Nuts and bolts for fastening | Tightening torque |
| 1 | 1...10 | From hand to stop |
| 2 | 1...10 | 20 Nm |
| 3 | 1...10 | Turn 90 degrees further |
[Source of the article web resource: Skodabook.ru]

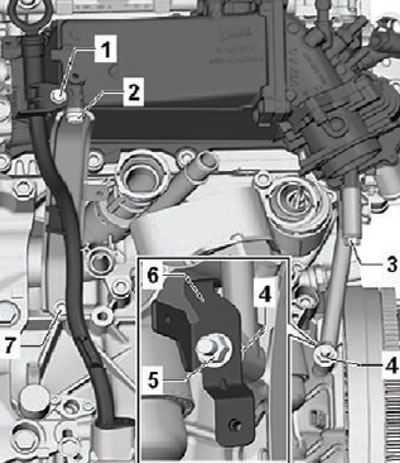

Intake manifold strut and throttle body module mounting bracket.
| Approaches | Nuts and bolts for fastening | Tightening torque |
| 1 | 2, 3, 4, 7 | From hand to stop |
| 2 | 2, 3, 4, 7 | 20 Nm |
| 3 | 5 | 10 Nm |
| 4 | 1 | 10 Nm |
