Engine oil pressure sensor (pressure relief line) (Skoda Kodiaq NS7)

Removal

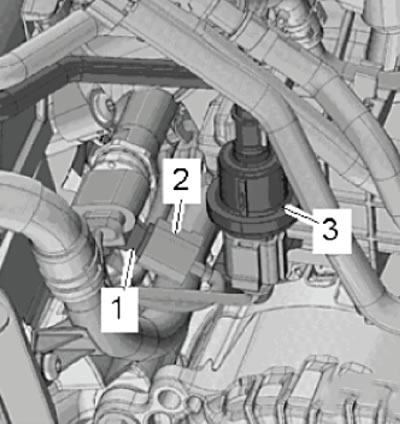

1. Pull and move the solenoid valve 1 of the fuel vapor recovery system activated carbon filter (3) away from the intake manifold, and then move it downwards.

2. Disconnect the wiring harness connector (2) shown in the figure below.

Note: Place a rag under the engine oil pressure sensor to collect any leaking engine oil.

3. Unscrew the engine oil pressure sensor for the oil reduction line (1) as shown in the figure above.

Installation

Installation is carried out in the reverse order of removal.

Note: The sensor O-ring must always be replaced after disassembly.

To prevent large losses of engine oil, after removing the sensor from the engine, a new sensor must be installed in its place immediately.

• Check the engine oil level in the engine. If necessary, weigh it up to the required level.
• The tightening torque for the engine oil pressure sensor when installed is 20 Nm.
